Project-Star Spec Stage 3 Clutch Install (Actually the teardown)
Listed here below are quite a few photos that are from the install that I started on 6/21/03.


Back from the paint shop.. After 'someone' ruined my clutch..

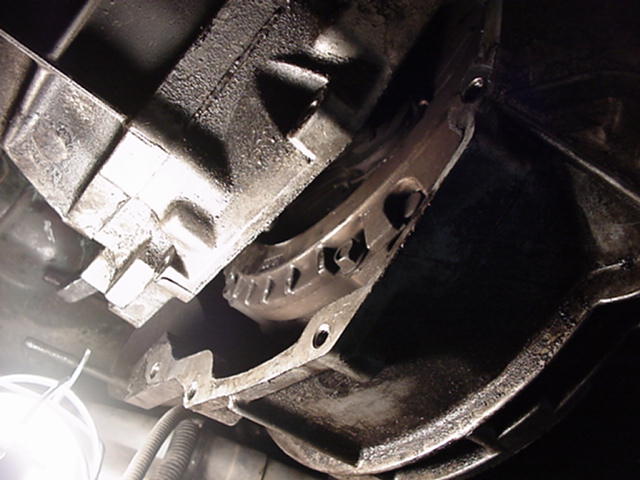

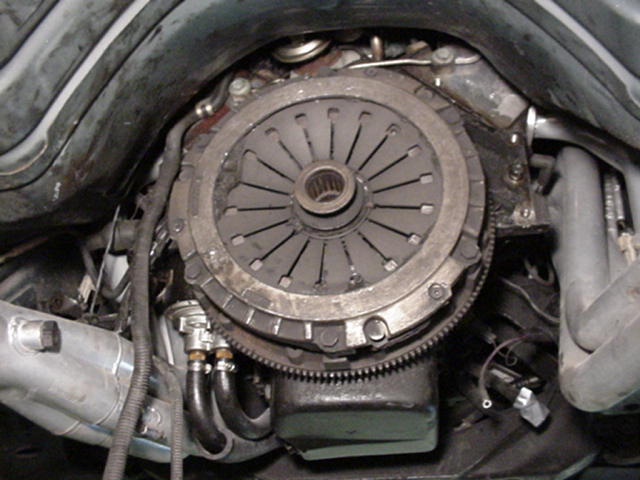

Note the chunks (towards bottom of pic) of the disk that was left,the rest "was" the clutch.
The car barely Idled.. Rediculous what careless people do.

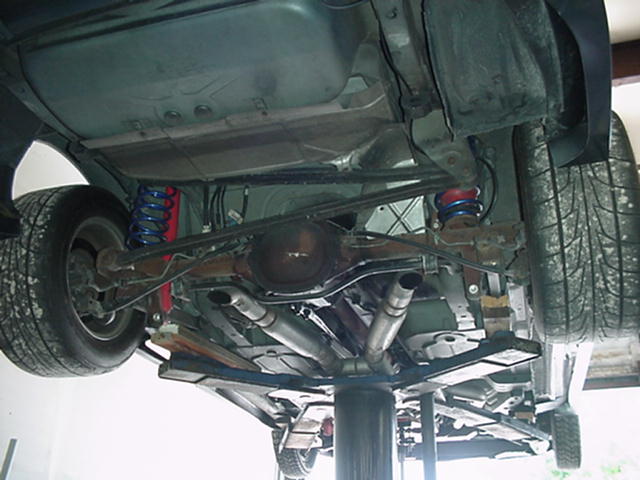

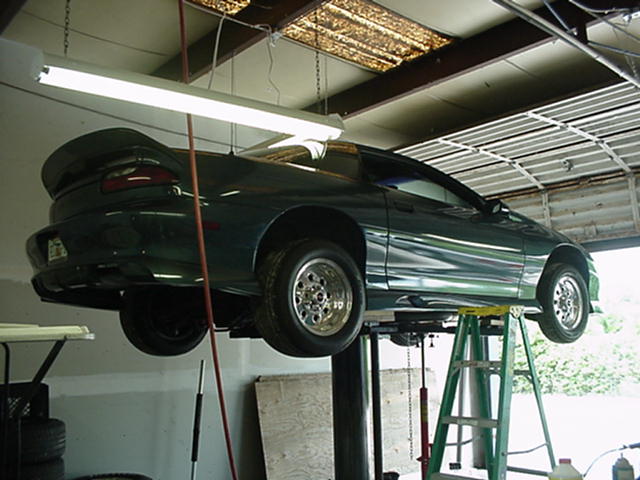

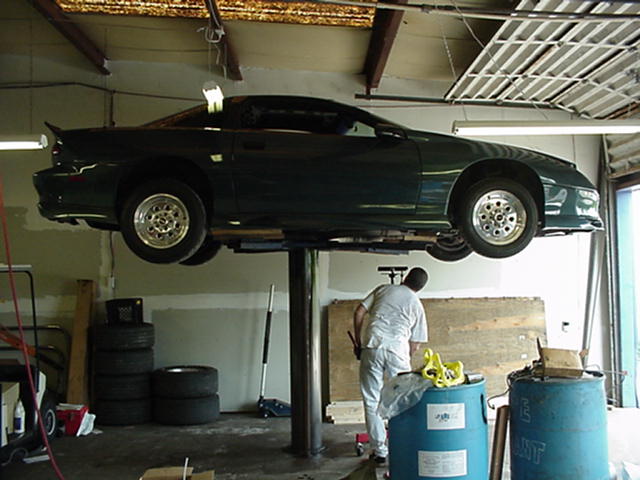

Thanks to Rick for renting the lift to me for the weekend..

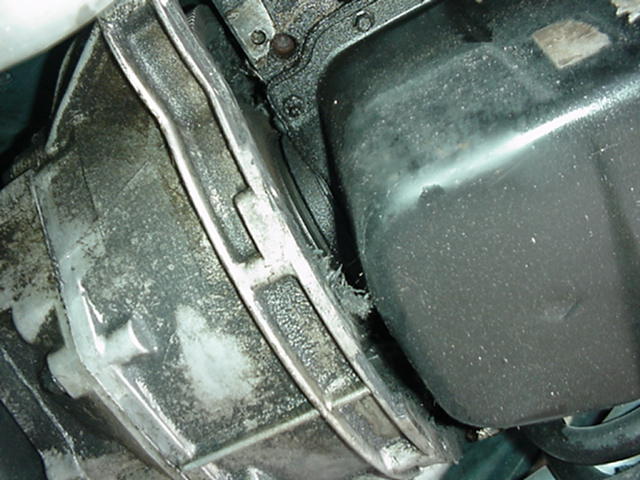

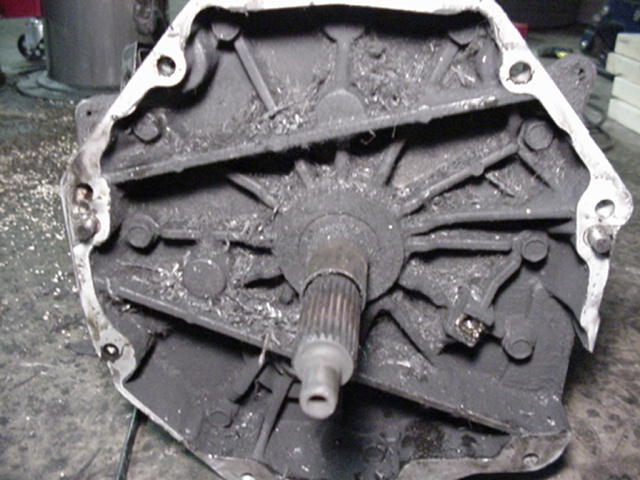

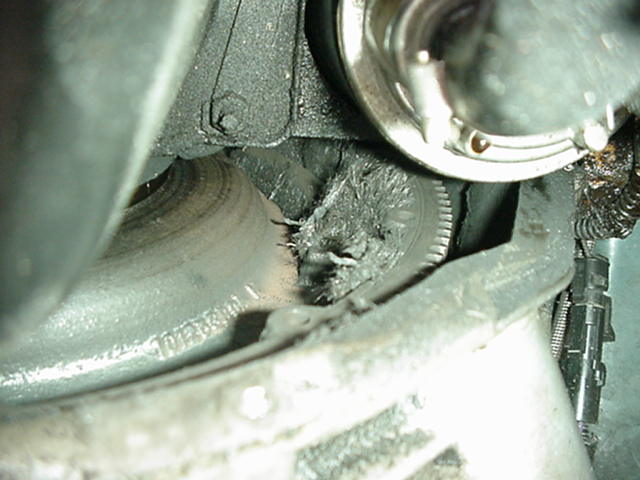

See the disk fibers ??

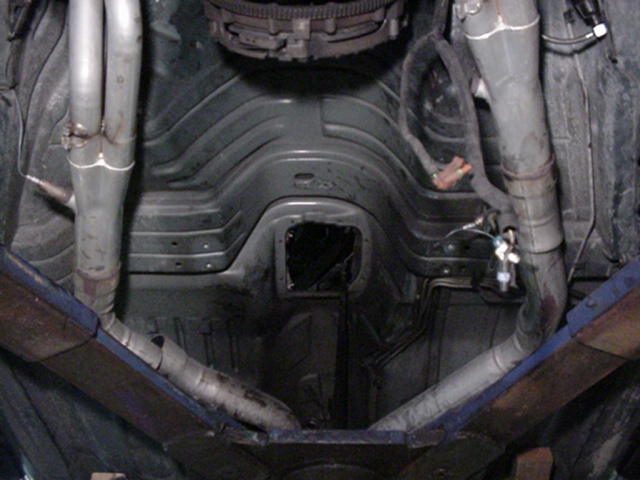

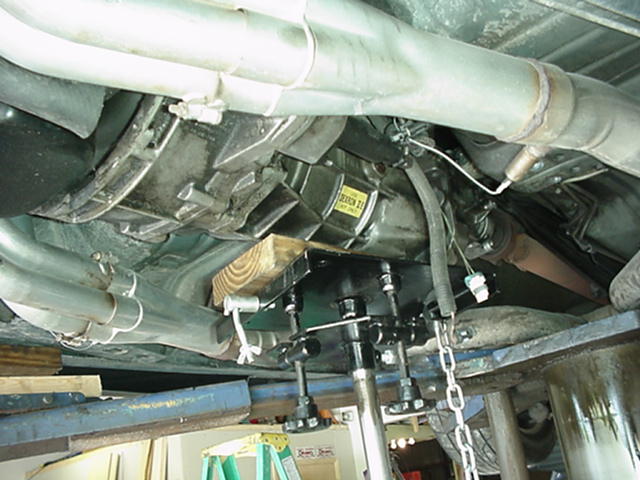

There is NO clearance on manual tranny car floorboards!

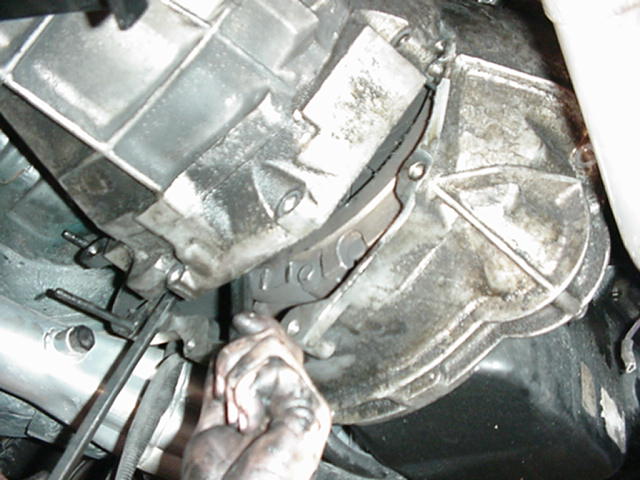

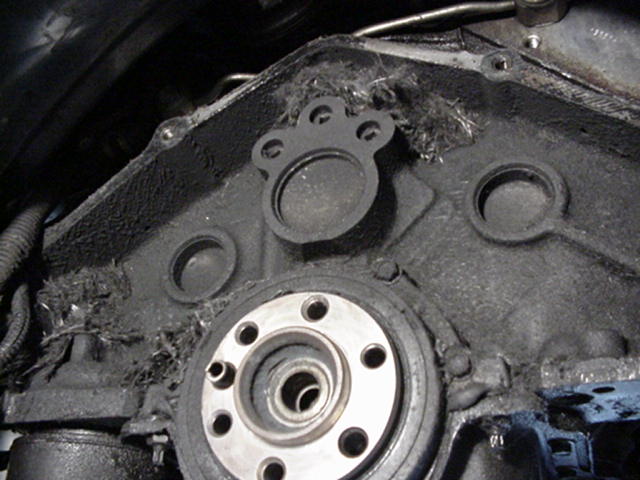

The fricken fibers were EVERYWHERE

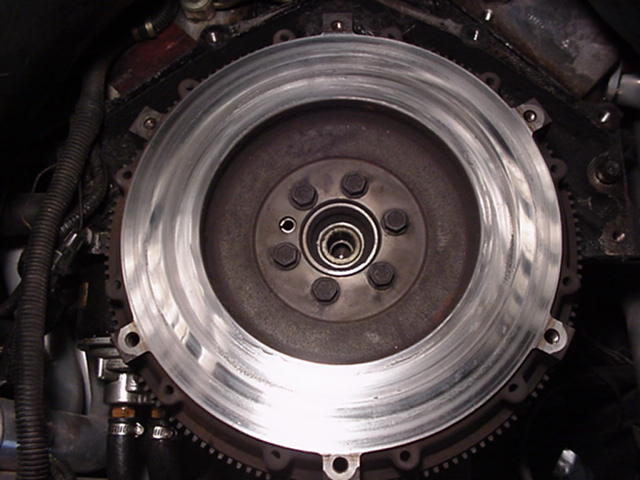

FINALLY Something looks like it's missing....
